SwiGO

A simple timer switch

Product-Image

Ideal for use with water pump motors, water heaters, lighting and other household appliances wherever the operation is to be controlled by time and where we frequently forget to switch OFF in time/after use.



buy-at-amazon

Simple Interface

4 different time buttons and one stop button, OFF button for forced stop, that is it

Withstands High Voltages upto 440V AC

SwiGO can now withstand up to 440V AC. It will protect your connected Pumps, Motors, Geysers, Lights etc from High Voltages by switching off beyond 290V AC.

Worryless double tier protection from tank overflow

The SwiGO timer switch is all that require for daily pumping needs. If your needs vary or your tank needs to be full all the time, connect a float switch (not included) to SwiGO. It will detect and cut off if the tank is full or when the timer goes off, whichever happens first. This protects the pump should the float switch fail

Sturdy build

Heavy duty relay and fire resistant casing. Robust Material (Strong & Thick material)

Multiple variants

Available in multiple time settings. Minutes and hours.

  • 15, 30, 45, 60 mins (Order Code EDS001)
  • 5, 10, 15, 20 mins (Order Code EDS002)
  • 4, 8, 12, 16 hours (Order Code EDS003)
  • 1, 2, 3, 4 hours (Order Code EDS004)
  • How to install

    SwiGO and SwiGO Smart connection to Single Phase / Single capacitor starter

    SwiGO with submersible starter connection

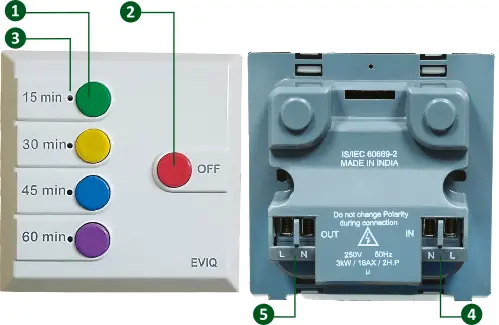

    Usage Guide

    1. The four colour buttons can be used to switch ON the load. The load will remain ON for the time specified near the button.
    2. The RED button is used to switch OFF the load in case of emergency or wrong selection of time.
    3. The Red light indication shows the load is switched ON for the time specified near it.
    4. Line and Neutral input from supply
    5. Line and Neutral output to load.
    6. Note: Wiring and installation instructions give along with the product.

    Approval

    Specifications

    Description Value
    Rated Voltage 250V AC 50Hz
    Max Withstand Voltage 440V AC
    Cut-Off Voltage >290V AC
    DC Output for Float Switch 5V DC
    Maximum Operating Current 16AX/2HP/3kW
    Mounting Method Flush/Surface
    Suitable Box Indian – 2 module Box
    Conforms to standard IS/IEC 60669-2
    Color White
    Warranty 1 Year
    Product Weight 140gms
    Product Dimensions 87 x 87 x 45 mm
