SwiGO Modular

Modular SwiGO

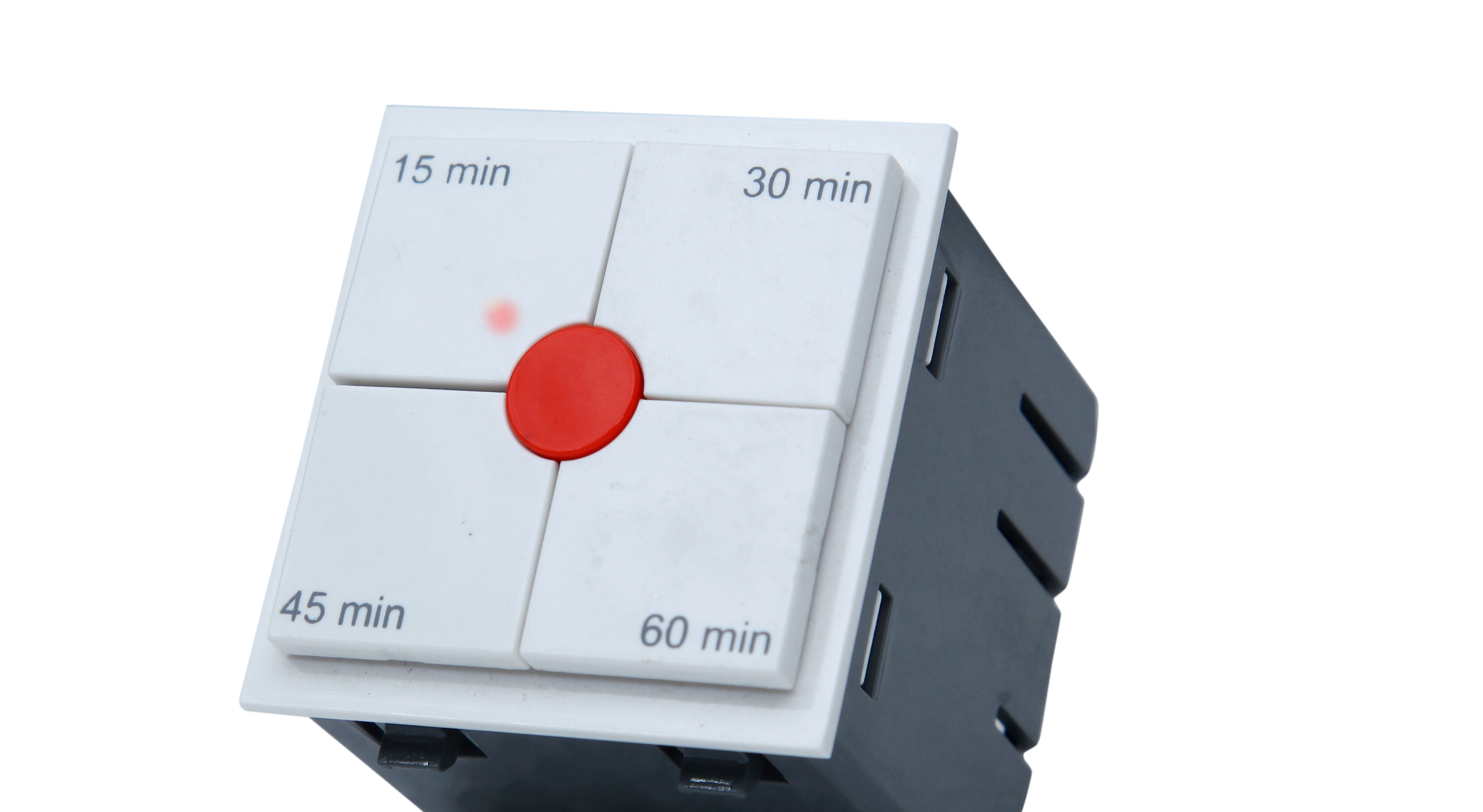

Product-Image

Ideal for use with water pump motors, water heaters, lighting and other household appliances wherever the operation is to be controlled by time and where we frequently forget to switch OFF in time/after use.



buy-at-amazon

Simple Interface

4 different time buttons and one OFF button, that is it

Fits in existing sockets

Fits in 2 module boxes

Robust build

Robust Material (Strong & Thick material) Plastic parts are made of fire resistant and virtually unbreakable Polycarbonate. Heavy duty relay

Available in multiple variants

Available in multiple time settings. Minutes and hours.

15, 30, 45, 60 mins (Order Code EDS001M)
5, 10, 15, 20 mins (Order Code EDS002M)
4, 8, 12, 16 hours (Order Code EDS003M)
1, 2, 3, 4 hours (Order Code EDS004M)

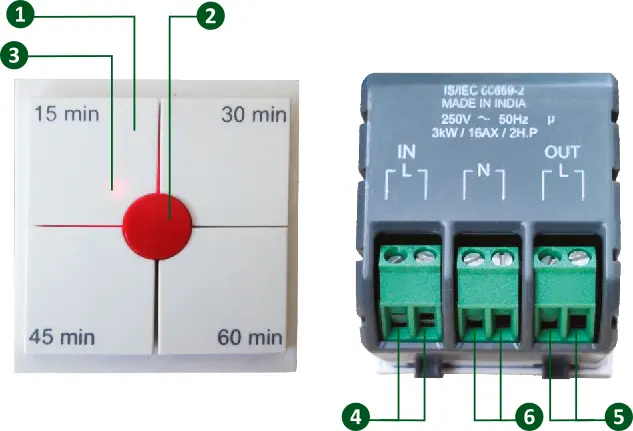

Usage Guide

  1. The four colour buttons can be used to switch ON the load. The load will remain ON for the time specified near the button.
  2. The RED button is used to switch OFF the load in case of emergency or wrong selection of time.
  3. The Red light indication shows the load is switched ON for the time specified near it.
  4. Line and Neutral input from supply
  5. Line and Neutral output to load.
  6. Note: Wiring and installation instructions give along with the product.

Additional Links

  • Download guide for using SwiGO Modular with various motor starters
  • Downloadable installation instructions for SwiGO Modular
  • Leaflet

    • Approval

    Specifications

    Description Value
    Rated Voltage 250V AC 50Hz
    Maximum Operating Current 16AX/2HP/3kW
    Suitable for 2 module variant of Anchor/ Roma / Brands with similar dimensions
    Conforms to standard IS/IEC 60669-2
    Color White
    Warranty 1 Year
    Product Weight 100gms
    Product Dimensions 51 x 48 x 54 mm
