SwiGO SuperSmart
Set it and Forget it! Smart Naturally!!
How often you were looking for a switch which can be scheduled, which will protect your devices from High/Low Voltage, Overload, Dry-run etc., View the operation history, Indicate any power issues with indicators, More than anything, All these without internet dependency…
With SwiGO SuperSmart, you can control and monitor your appliances with embedded webserver(inside SwiGO SuperSmart) and can be monitored from anywhere in the world.
- Smart Timer Switch, Schedulable
- No Net.. No Problem… Smartness built-in
- Safeguard your devices from Dry-run, Overload, Voltage fluctuations, etc…
Simple Interface
For simple physical operation, 4 buttons with preset times are available. A physical LED indicator blinks for whichever time mode is active. When the device was automatically operated at scheduled time or through Mobile or App, Blue LED below the stop button blinks.
Programmable with browser

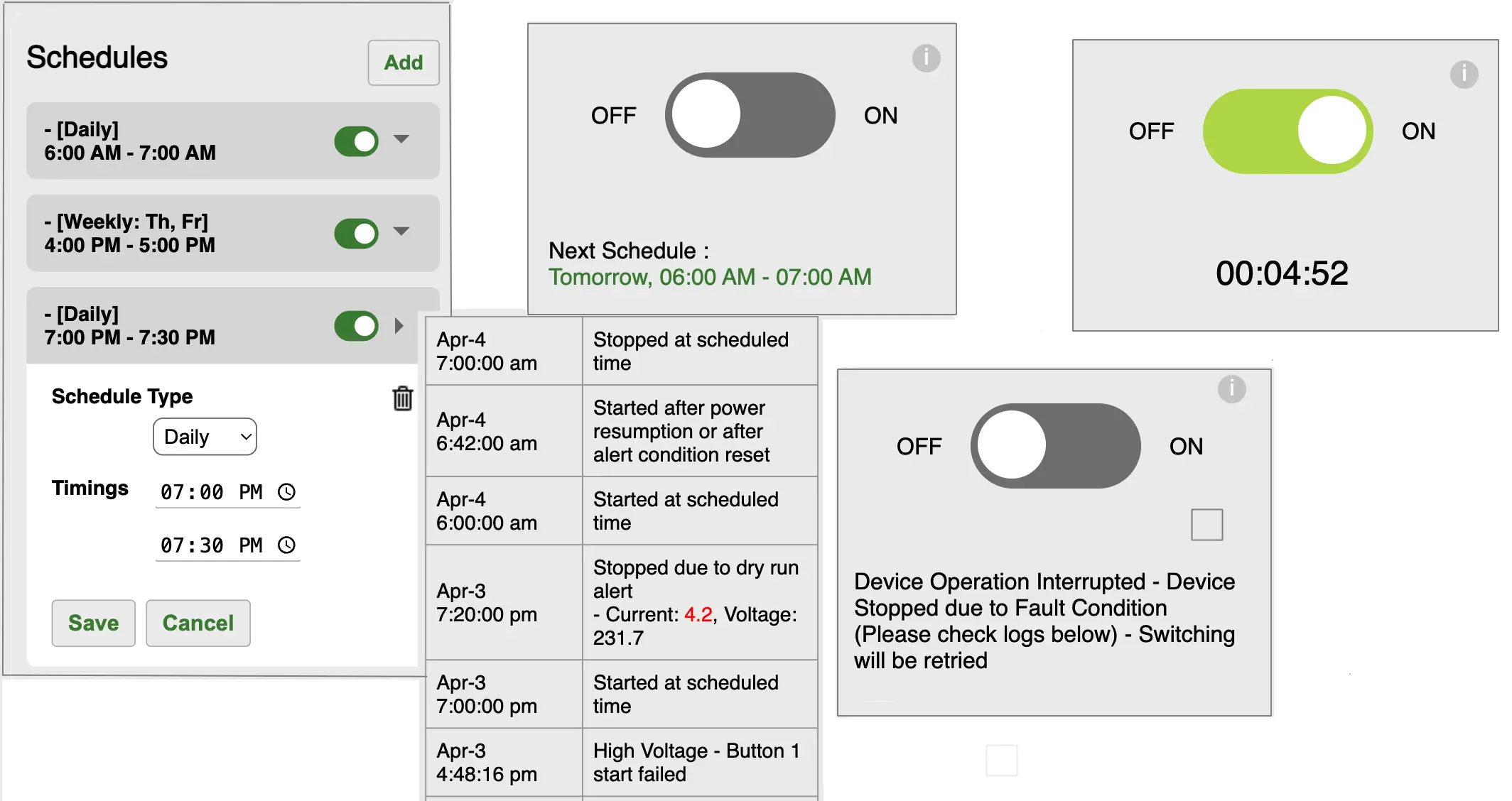

SwiGO SuperSmart can be scheduled for daily or weekly schedules, based on the need. Device operation history is directly available in a webpage.
Comprehensive Power Monitoring

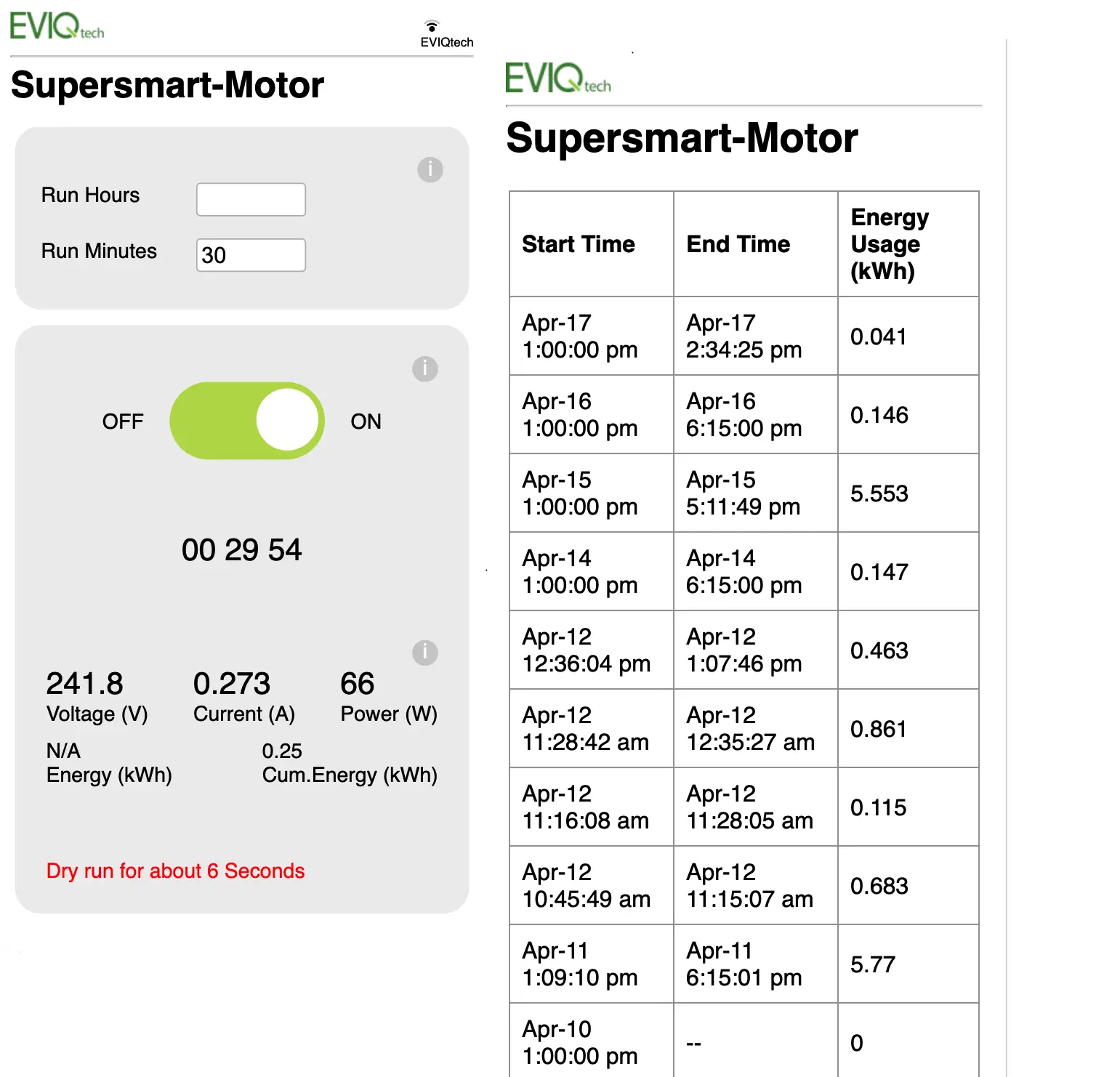

Measures voltage, current, power and energy consumption in real-time, offering insights into usage patterns directly on your mobile via a local Wi-Fi access point. Saves money and space by combining control and monitoring in one device, empowering users to optimize energy use and reduce bills.

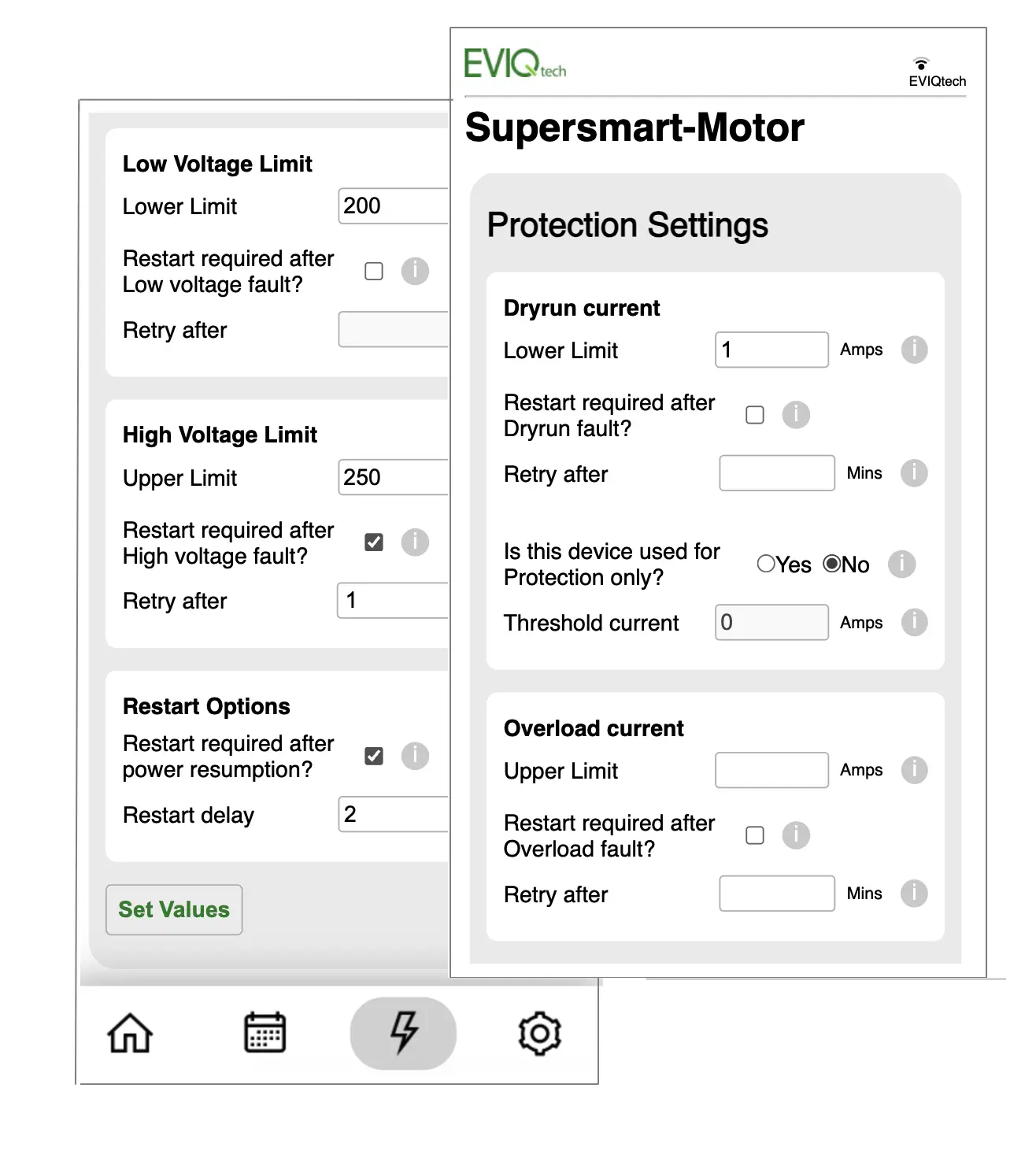

Protection settings
Protects connected devices from overload, overvoltage (cuts off above 290V AC), undervoltage, dry-run (for pumps) and surges withstanding up to 440V AC. Based on the connected load(Motors, submersibles, lights or other machineries) Current and Voltage limit can be set beyond which the SwiGO SuperSmart will stop. Whether retry is to be enabled after a fault condition or after power outage can be set as per your choice.
Wide Application Range
Supports single-phase loads up to 2HP (20A/5 kW) directly, Upto 3HP Submersible pumps, 3-phase loads up to 30 HP with a starter, covering pumps, heaters, lights, and machines.
Shoping Links
Advanced Protection Features
SwiGO SuperSmart can withstand upto 440V AC, Protects connected devices from overload, overvoltage (cuts off above 290V AC), undervoltage, dry-run (for pumps), and surges. Abnormal conditions like Low voltage and High voltage conditions, Dry-run, Overload are indicated with rapid blinks.
Double tier protection from tank overflow
The SwiGO SuperSmart is all that require for daily pumping needs. If your tank needs to be full all the time, connect a float switch (not included). It will detect and cut off if the tank is full / when timer goes off, whichever happens first. This protects the pump should the float switch fail
Available in multiple timer variants
Available in multiple time settings for physical operation, Minutes and hours.
5, 10, 15, 20 mins (Order Code EDS031)
15, 30, 45, 60 mins (Order Code EDS032)
1, 2, 3, 4 hours (Order Code EDS033)
4, 8, 12, 16 hours (Order Code EDS034)
