SwiGO Smart

A Smart Home timer switch

Product-Image

How often do you forget to switch off the Water Pump or the Water Heater on time? SwiGO Smart helps by switching on and off after a set time.

With SwiGO Smart, you can control and monitor your appliances from anywhere in the world. Just be connected to the Internet!

  • Use with Water Pumps directly up to 2HP. You don’t have to go down even once! Use your smart phone .
  • Need your compound lighting or shop-banners to switch on and off at the right time?
  • Anybody can learn to operate it. A dependent parent living alone? Ease their lives and operate the essentials remotely. Or, teach them to press one single button.



buy-at-amazon

buy-at-flipkart

Simple Interface

For simple physical operation, 4 buttons with preset times are available. A physical LED indicator blinks for whichever time mode is active

Smart Home Enabled

Control it from your phone as well. For scheduling and smart features, the Smart Life application is available.

Voice enabled

The Smart life app now allows you to control your devices via voice control. Works with Alexa, Google Assistant and Siri. Say, "Start my motor!"

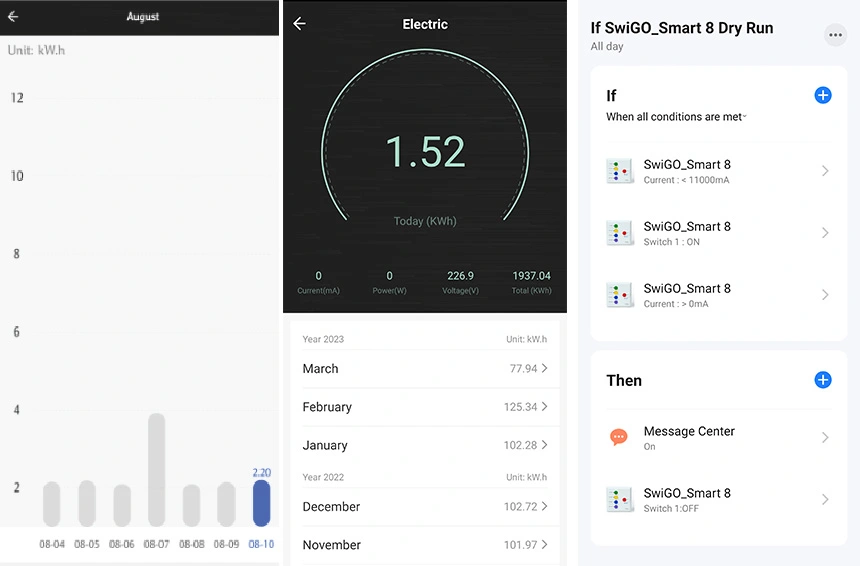

Measure current and voltage

Measures Current and Voltage consumed. Set ‘if’, ‘then’ conditions from within the app to start and stop. Use ‘if’ and ‘and’ conditions to protect from Over Current and Dry Runs

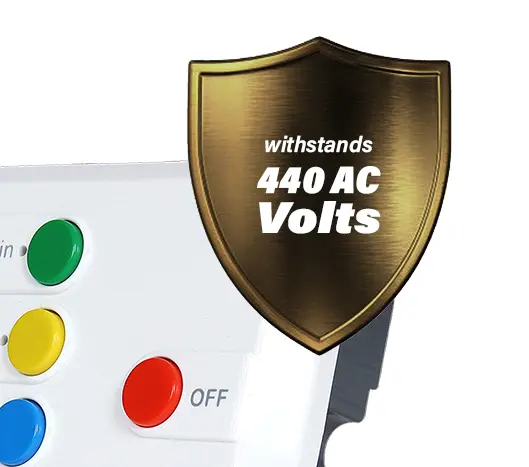

Withstands High Voltages upto 440V AC

SwiGO can now withstand up to 440V AC. It will protect your connected Pumps, Motors, Geysers, Lights etc from High Voltages by switching off beyond 290V AC.

Double tier protection from tank overflow

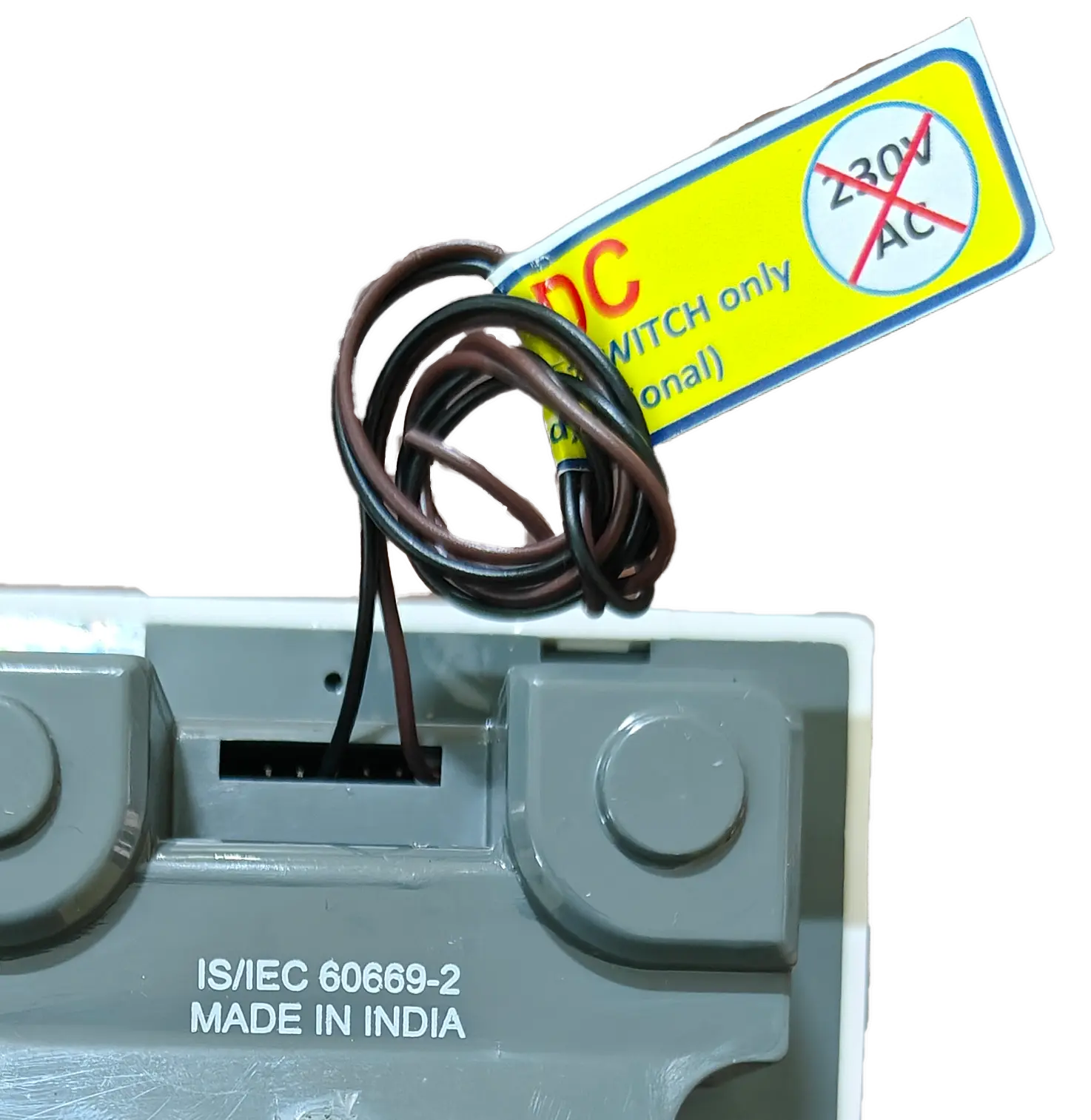

The SwiGO timer switch is all that require for daily pumping needs. If your tank needs to be full all the time, connect a float switch (not included) to SwiGO. It will detect and cut off if the tank is full / when timer goes off, whichever happens first. This protects the pump should the float switch fail

Available in multiple timer variants

Available in multiple time settings. Minutes and hours

  • 5, 10, 15, 20 mins (Order Code EDS021)

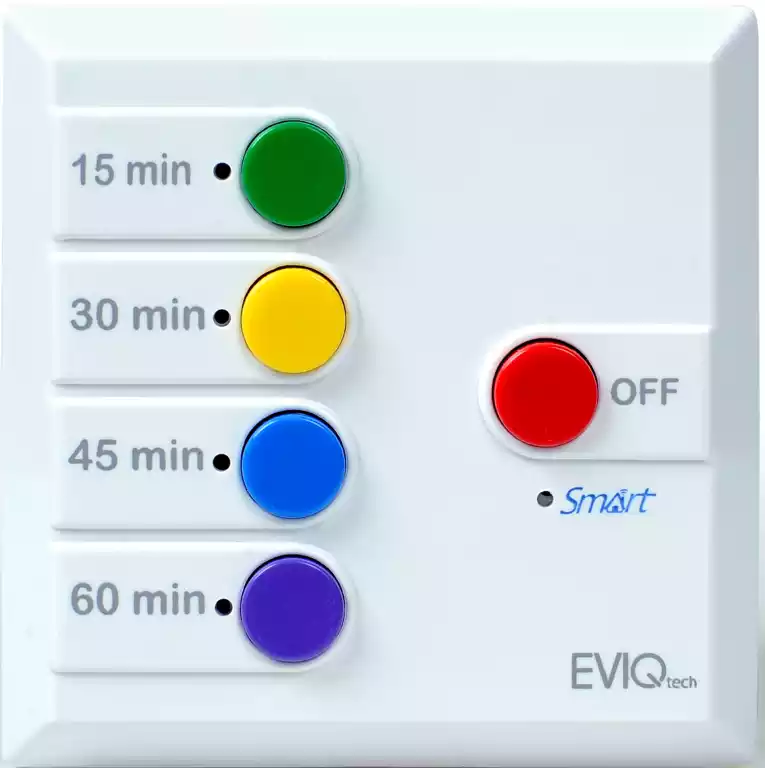

  • 15, 30, 45, 60 mins (Order Code EDS022)
  • 1, 2, 3, 4 hours (Order Code EDS023)

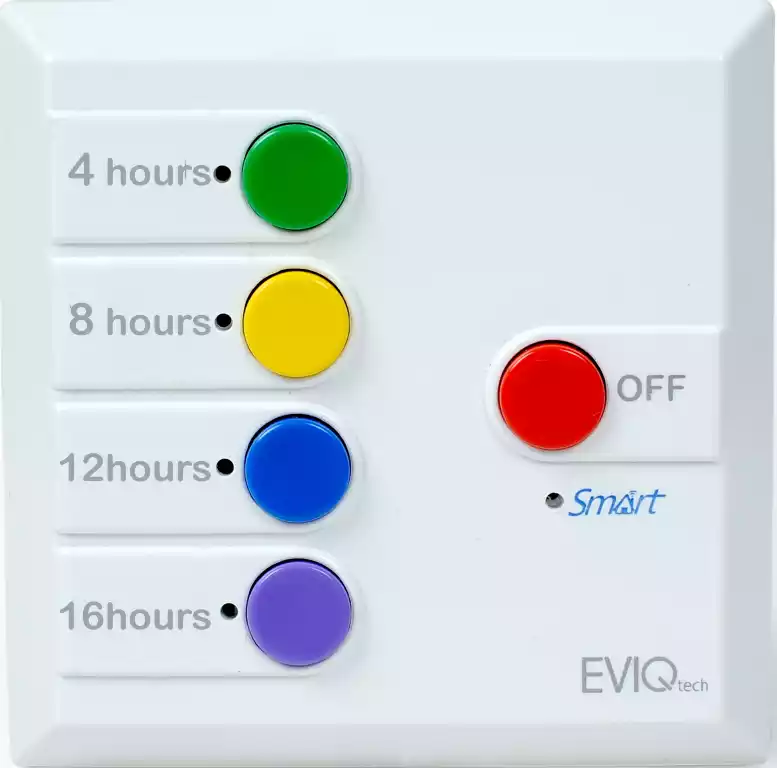

  • 4, 8, 12, 16 hours (Order Code EDS024)

    • Usage Instructions

    Using Swigo Smart with Self Starter

    SwiGO Smart App Setup with Overload and Dry Run

    SwiGO and SwiGO Smart connection to Single Phase / Single capacitor starter

    Smart Possibilities

  • Limitless scheduling options via Smart Life App
  • Schedule switch on and off from the Smart Life app. Have schedules that start everyday at the same time or once a week. Anything.
  • Monitor power consumption from the Smart Life app. Know which appliances are power consuming.
  • SwiGO Smart protects equipment from: Overload, Dry run, High Voltage, Low Voltage by allowing you to set an operation range on the Smart Life app.

    • Usage

  • Connect the device to your WiFi network via the Smart Life app on your phone.*
  • After configuring the device, you are good to go and control the device from anywhere in the world.

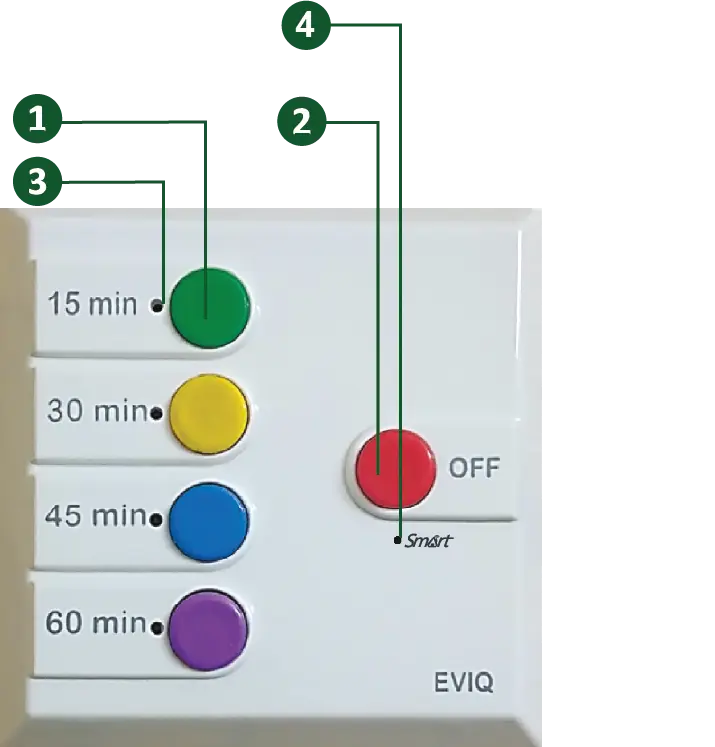

  • Indicator LED (4) blinks when smart functions are active
  • It can be operated physically by using any of the 4 time buttons(1). An indicator light blinks when active(3).
  • The stop button(2) can be used to immediately switch off.

    • Using with Submersible Pumps

  • To auto start the starter of Single Phase submersible pumps, use EVIQ Self Starter (EDS011)
  • 250V, 50 Hz, Single Phase
  • Works with leading brands of Motor Starters with Contactors.
  • (While connecting through Contactor Coil, SwiGO smart current measurement does not show Load Current)

    • Usage Guide

    1. Connect the device to your WiFi network via the Smart Life app on your phone.*
    2. After configuring the device, you are good to go and control the device from anywhere in the world. Indicator LED (4) blinks when smart functions are active
    3. It can be operated physically by using any of the 4 time buttons(1). An indicator light blinks when active(3).
    4. The stop button(2) can be used to immediately switch off.

    Additional Links

  • SwiGO Smart with Smart Instructions video instructions
  • Setting up SwiGO Smart
  • Leaflet
  • Connection diagram for SwiGO Smart use with EVIQ Self Starter

    • Approval

    Specifications

    Description Value
    Rated Voltage 250V AC 50Hz
    Maximum Operating Current 16AX/2HP/3kW
    Maximum Switching Voltage 270V AC 50Hz
    Cut-Off Voltage <190V AC && >290V AC
    DC Output for Float Switch 5V DC
    Mounting Method Flush/Surface
    Suitable for Indian 2 module box
    Conforms to standard IS/IEC 60669-2
    Color White
    Warranty 1 Year
    Product Weight 140gms
    Product Dimensions 87 x 87 x 45 mm
    Terminal Size 2.5 square mm x 2
